Home / Products / Marine Rope Series / Marine polyester rope

Marine polyester rope Wholesale

Marine polyester rope Marine polyester rope Marine polyester rope
Marine Rope Series

Marine polyester rope

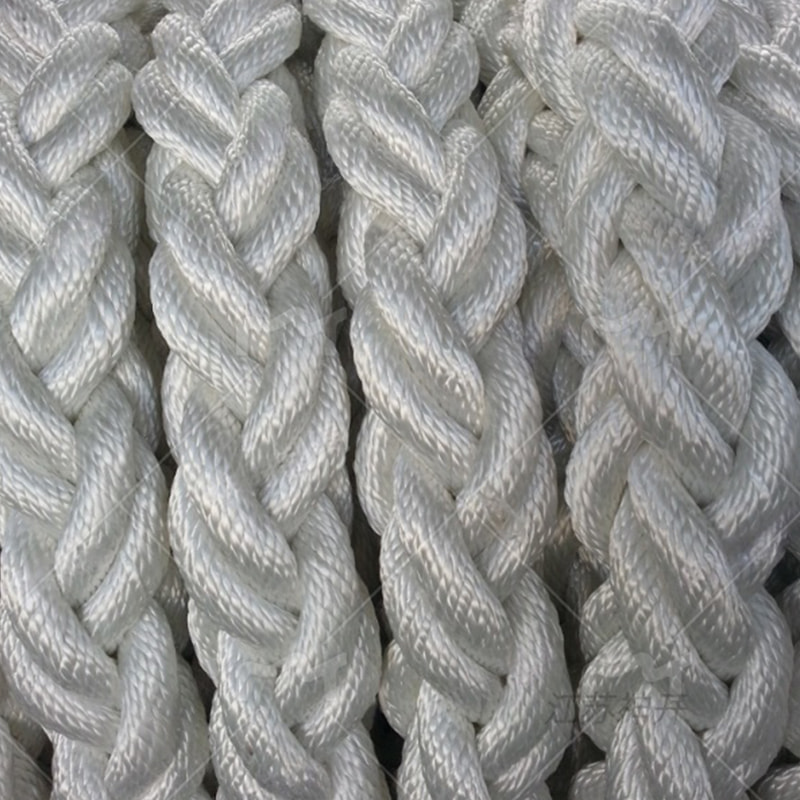

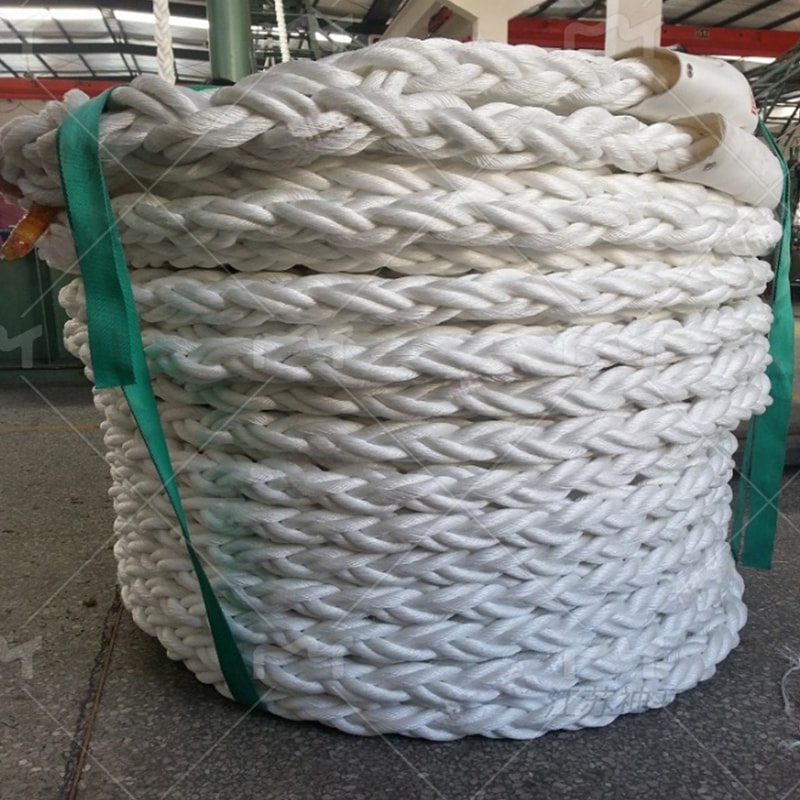

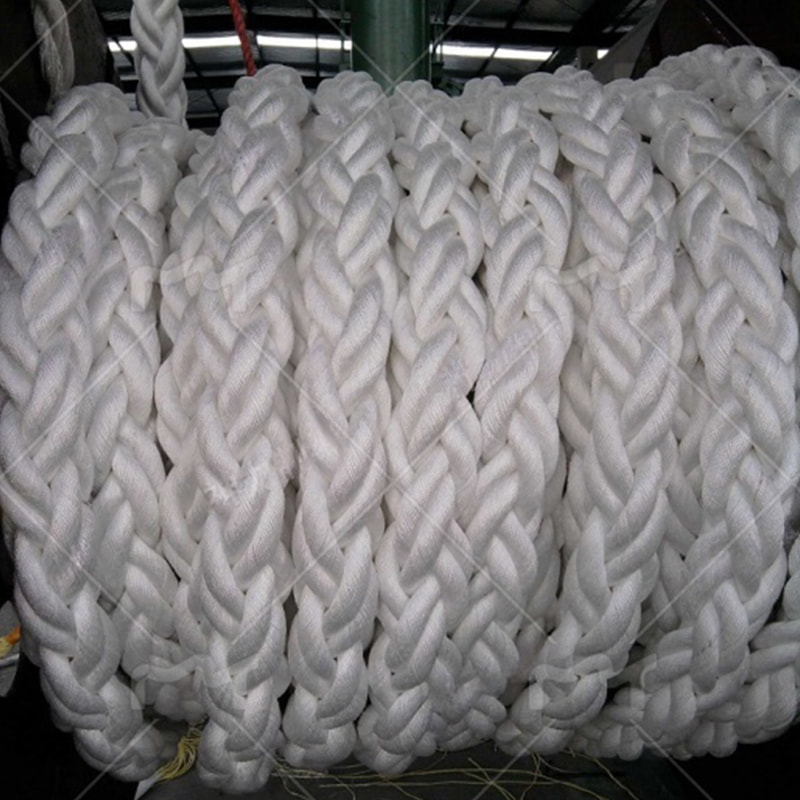

Polyester fiber boasts a breaking strength of 4-7 cN/dtex, and cables made from it typically have a breaking strength between 30 and 150 kN, meeting the demands of medium-duty operations such as lifting medium-sized equipment and mooring ships. Polyester fiber's smooth surface and high crystallinity minimize wear when rubbing against pulleys and metal components, resulting in abrasion resistance superior to polypropylene cables and approaching 80% that of aramid cables. Polyester fiber has a moisture regain of only 0.4%, making it virtually non-absorbent. It also exhibits low thermal shrinkage (less than 1% below 100°C). This product is meticulously crafted, machine-woven from carefully selected polyester, offering corrosion and weathering resistance and high load-bearing properties. The machine-woven process, known as MACHINEWEAVING, ensures durability and strength, resulting in a uniform, glossy, and meticulously crafted cable. Made from multi-strand twisted and glued together, it boasts a high density, evenly distributed force distribution, and enhanced tensile strength.

E-mail: [email protected]
Contact Us
  • Marine polyester rope
  • Marine polyester rope
  • Marine polyester rope
PREV：Marine aramid rope
NEXT：No previous article

  • The product diameter is available from 28 to 160MM, and the linear density is available from 594 to 19400Ktax. The breaking strength is divided into eight-strand rope and twelve-strand rope. The breaking strength varies with different parameters such as the number of strands and diameter.

    Diameter
    mm    		 Cire.
    inch    		 Linear density Minimum breaking strength
    kN
    Nominal
    Ktex    		 Tolerance
    %    		 8 strands 12 strands
    12 1-1/2 109 ±8 23 25
    16 2 194 40 42.5
    20 2-1/2 304 63 67
    24 3 437 90 95
    28 3-1/2 595 118 125
    30 3-3/4 683 132 140
    32 4 777 150 160
    36 4-1/2 984 190 200
    40 5 1210 ±5 236 250
    44 5-1/2 1470 280 300
    48 6 1750 335 355
    52 6-1/2 2050 400 425
    56 7 2380 450 475
    60 7-1/2 2730 500 530
    64 8 3110 560 600
    72 9 3930 710 750
    80 10 4860 900 950
    88 11 5880 1060 1120
    96 12 6990 1250 1320
    104 13 8210 1500 1600
    112 14 9520 1700 1800
    120 15 10900 1900 2000
    128 16 12400 2240 2360
    136 17 14000 2500 2650
    144 18 15700 2800 3000
    160 20 19400 3350 3550
